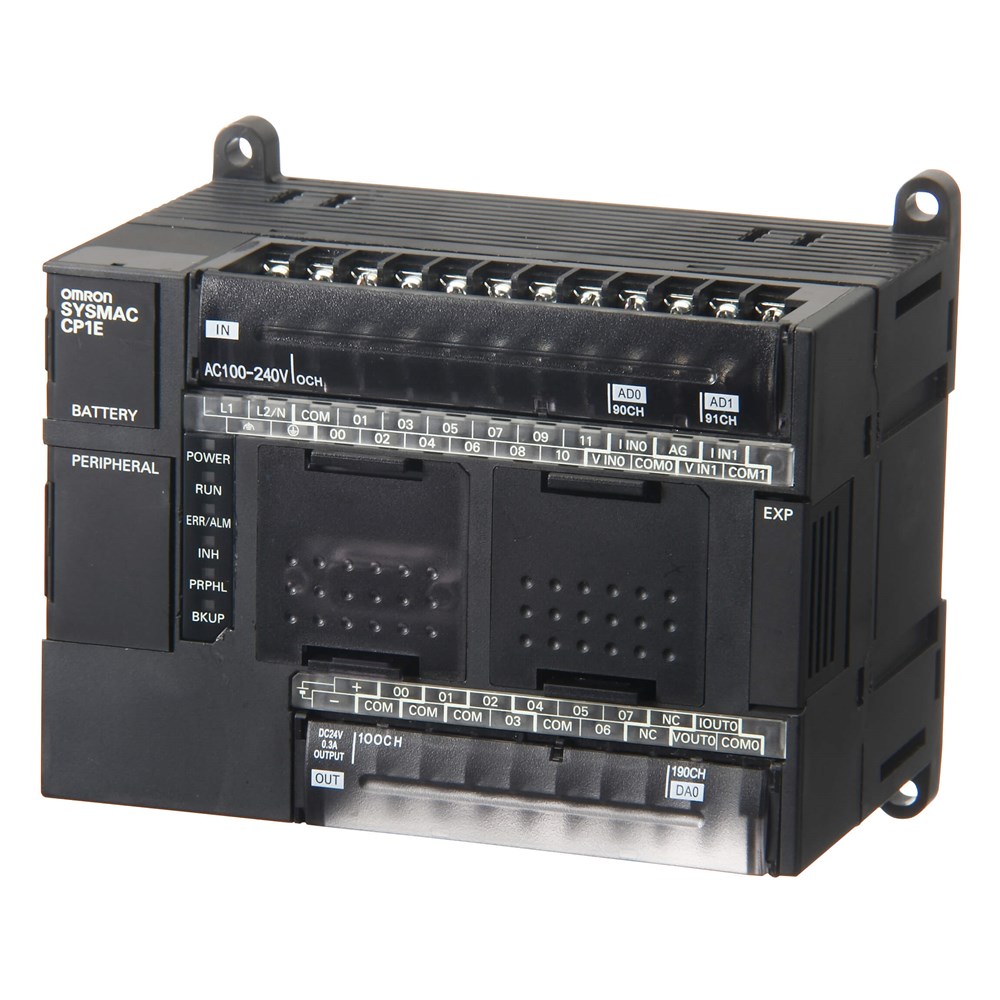

Omron CP1E-NA20DT1-D
Omron CP1E-NA20DT1-D
Omron

Omron CP1E-NA20DT1-D (CP1E-NA20DT1-D)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!





PLC, 24 VDC supply, 12 x 24 VDC inputs, 8 x PNP outputs 0.3 A, 2 x analog inputs, 1 x analog output, resolution 1/6000, 8K steps program + 8K words data memory, RS-232C port

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz





Supply voltage type DC
Number of digital inputs 12
Input type PNP/NPN
Number of digital outputs 8
Output type PNP
Program capacity 8 K steps
Data memory capacity 8 K words
Logic execution time 1.19 µs
Communication port(s) Serial RS-232C, USB
Number of Ethernet ports 0
Number of USB ports 1
Number of RS-232 ports 1
Number of RS-485 ports 0
Communication option(s) CompoBus/S Slave, Ethernet TCP/IP, Serial RS-232C, Serial RS-422, Serial RS-485
Max. encoder input frequency 100 kHz
Max. number of PTP axes 2
Max. pulse output frequency 100 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels 31
Max. number of local I/O points 140
Max. number of expansion units 3
Built-in auxiliary 24 VDC output 0 mA
Operating temperature range 0-55 °C
Height 90 mm
Width 130 mm
Depth 85 mm
Weight 550 g
