Omron CP1H-X40DT1-D
Omron CP1H-X40DT1-D

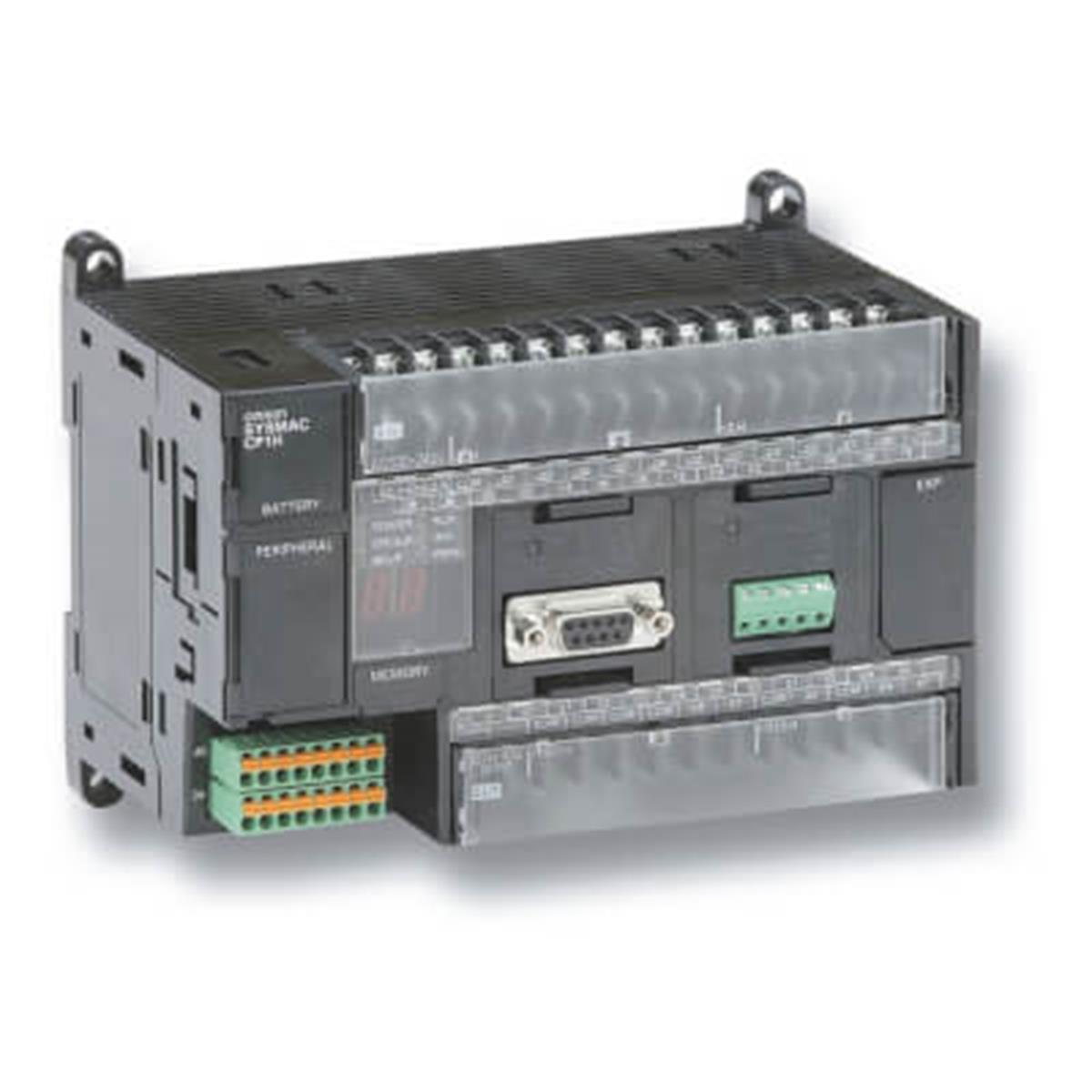

Omron CP1H-X40DT1-D (CP1H-X40DT1-D)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!





PLC, 24 VDC supply, 24 x 24 VDC inputs, 16 x PNP outputs 0.3 A, 1 x analog input, 20K steps program + 32K words data memory

Supply voltage type DC
Number of digital inputs 24
Input type PNP/NPN
Number of digital outputs 16
Output type PNP
Program capacity 20 K steps
Data memory capacity 32 K words
Logic execution time 0.10 µs
Communication port(s) USB
Number of Ethernet ports 0
Number of USB ports 1
Number of RS-232 ports 0
Number of RS-485 ports 0
Communication option(s) CAN, CompoBus/S Master, CompoBus/S Slave, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485
Number of analog inputs 0
Number of analog outputs 0
Number of encoder input channels 4
Max. encoder input frequency 100 kHz
Max. number of PTP axes 4
Max. pulse output frequency 100 kHz
Function Block programming
Battery-free memory backup x
Real-time clock
Analog option boards x
Max. number of analog I/O channels 56
Max. number of local I/O points 320
Max. number of expansion units 7
Built-in auxiliary 24 VDC output 0 mA
Operating temperature range 0-55 °C
Height 90 mm
Width 150 mm
Depth 85 mm
Weight 600 g
