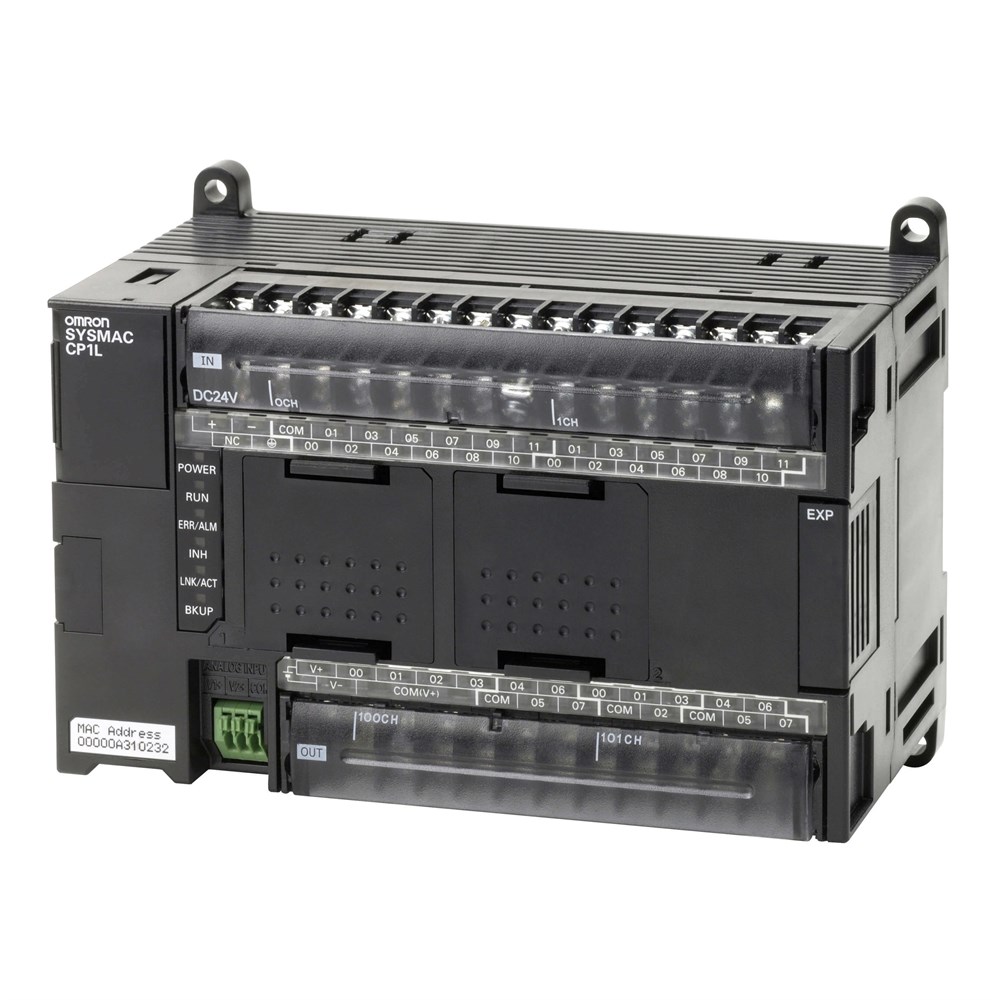

Omron CP1L-EM30DT1-D (CP1L-EM30DT1-D)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

PLC, 24 VDC supply, 18 x 24 VDC inputs, 12 x PNP outputs 0.3 A, 2 x analog inputs, 10K steps program + 32K words data memory, 1 x Ethernet port

Tavsiye Et

Yorum Yaz

Supply voltage type	DC
Number of digital inputs	18
Input type	PNP/NPN
Number of digital outputs	12
Output type	PNP
Program capacity	20 K steps
Data memory capacity	32 K words
Logic execution time	0.55 µs
Communication port(s)	Ethernet TCP/IP
Number of Ethernet ports	1
Number of USB ports	0
Number of RS-232 ports	0
Number of RS-485 ports	0
Communication option(s)	CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
Number of encoder input channels	4
Max. encoder input frequency	100 kHz
Max. number of PTP axes	2
Max. pulse output frequency	100 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels	34
Max. number of local I/O points	150
Max. number of expansion units	3
Built-in auxiliary 24 VDC output	0 mA
Operating temperature range	0-55 °C
Height	90 mm
Width	130 mm
Depth	85 mm
Weight	455 g
