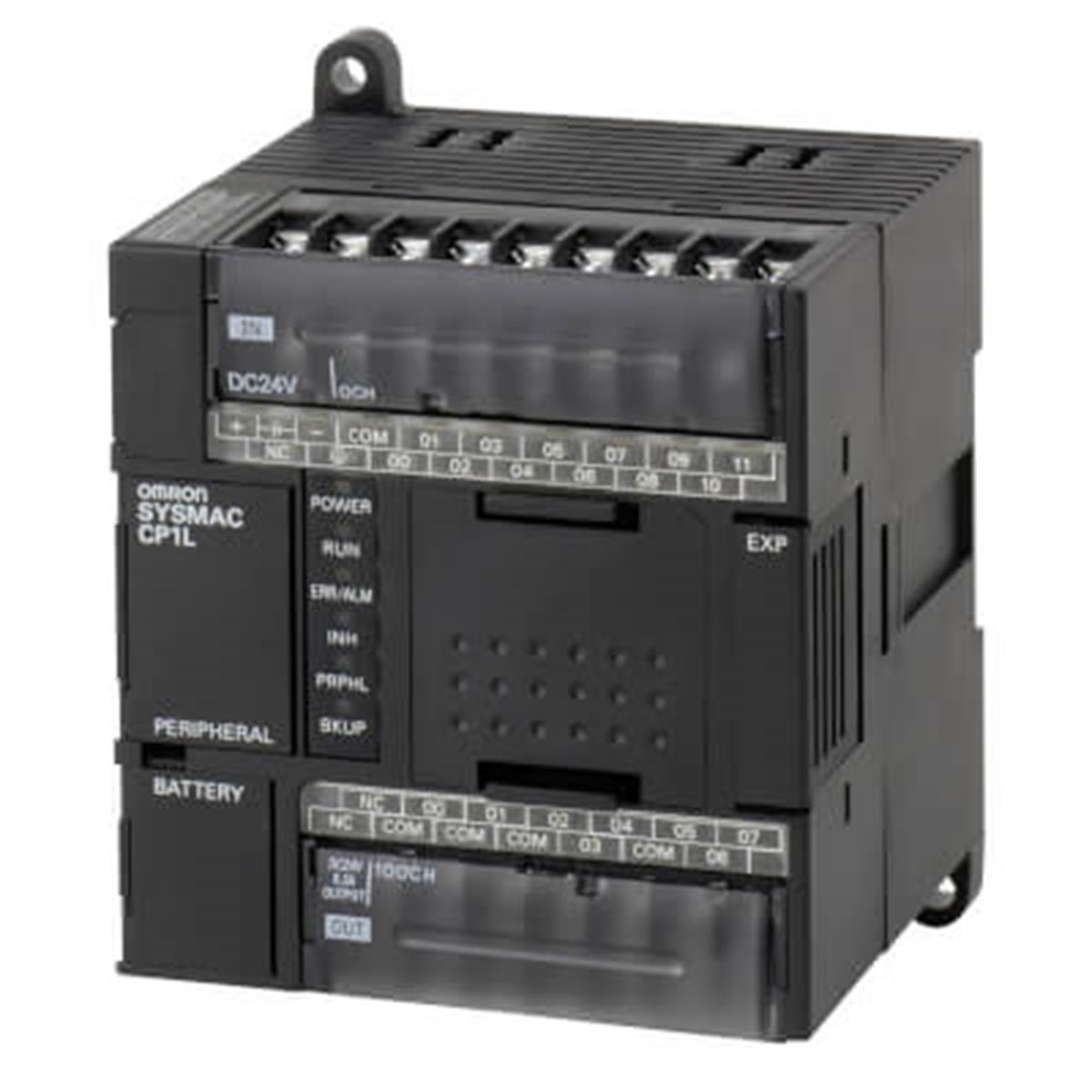

Omron CP1L-L14DR-A
Omron CP1L-L14DR-A

Omron CP1L-L14DR-A (CP1L-L14DR-A)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!







PLC, 100-240 VAC supply, 8 x 24 VDC inputs, 6 x relay outputs 2 A, 5K steps program + 10K words data memory

Supply voltage type AC
Number of digital inputs 8
Input type PNP/NPN
Number of digital outputs 6
Output type Relay
Program capacity 5 K steps
Data memory capacity 10 K words
Logic execution time 0.55 µs
Communication port(s) USB
Number of Ethernet ports 0
Number of USB ports 1
Number of RS-232 ports 0
Number of RS-485 ports 0
Communication option(s) CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
Number of encoder input channels 4
Max. encoder input frequency 100 kHz
Max. number of PTP axes 0
Max. pulse output frequency 0 kHz
Function Block programming
Battery-free memory backup x
Real-time clock
Analog option boards x
Max. number of analog I/O channels 8
Max. number of local I/O points 54
Max. number of expansion units 1
Built-in auxiliary 24 VDC output 200 mA
Operating temperature range 0-55 °C
Height 90 mm
Width 86 mm
Depth 85 mm
Weight 380 g
