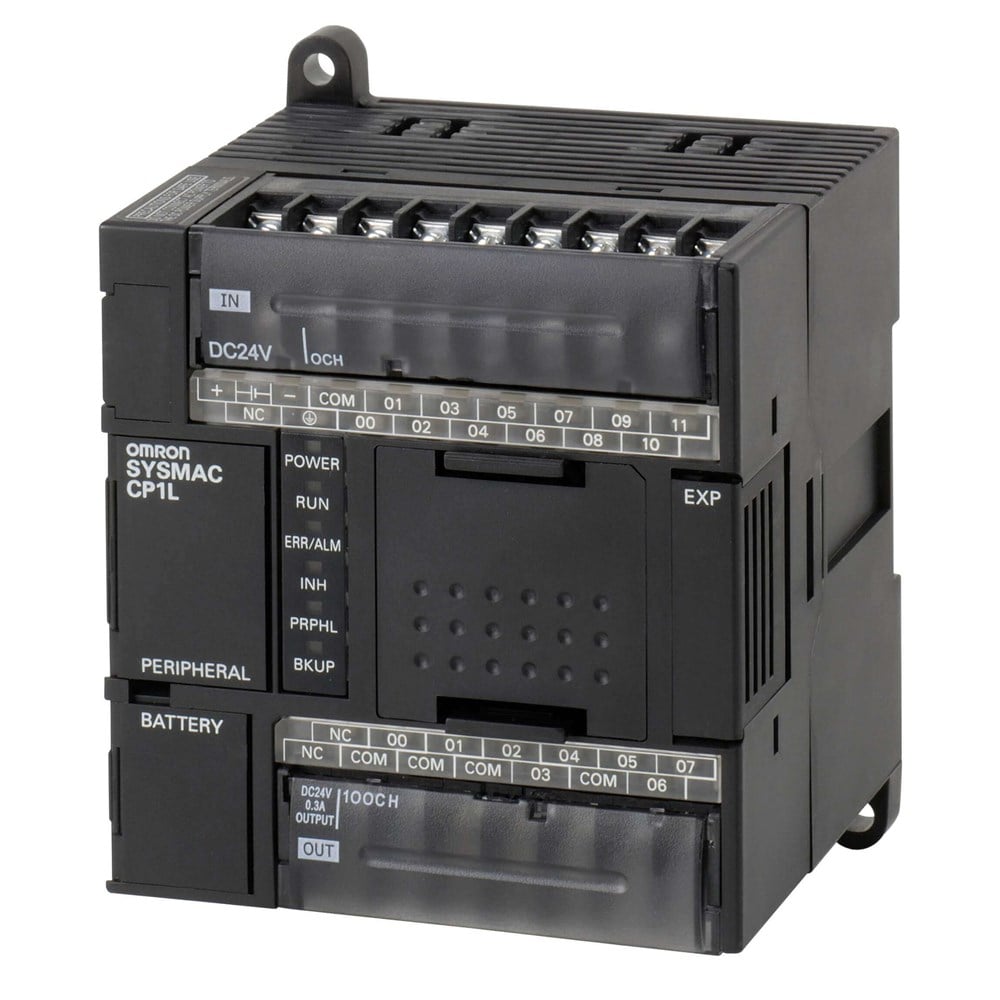

Omron CP1L-L4DT1-D (CP1L-L4DT1-D)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

PLC, 24 VDC besleme, 8 x 24 VDC giriş,
6 x röle çıkışı 2 A, 5K adım program + 10K word data hafızası

Tavsiye Et

Yorum Yaz

Supply voltage type	DC
Number of digital inputs	8
Input type	PNP/NPN
Number of digital outputs	6
Output type	PNP
Program capacity	5 K steps
Data memory capacity	10 K words
Logic execution time	0.55 µs
Communication port(s)	USB
Number of Ethernet ports	0
Number of USB ports	1
Number of RS-232 ports	0
Number of RS-485 ports	0
Communication option(s)	CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
Number of encoder input channels	4
Max. encoder input frequency	100 kHz
Max. number of PTP axes	2
Max. pulse output frequency	100 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels	8
Max. number of local I/O points	54
Max. number of expansion units	1
Built-in auxiliary 24 VDC output	0 mA
Operating temperature range	0-55 °C
Height	90 mm
Width	86 mm
Depth	85 mm
Weight	335 g

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ! PLC, 24 VDC besleme, 8 x 24 VDC giriş, 6 x röle çıkışı 2 A, 5K adım program + 10K word data hafızası
