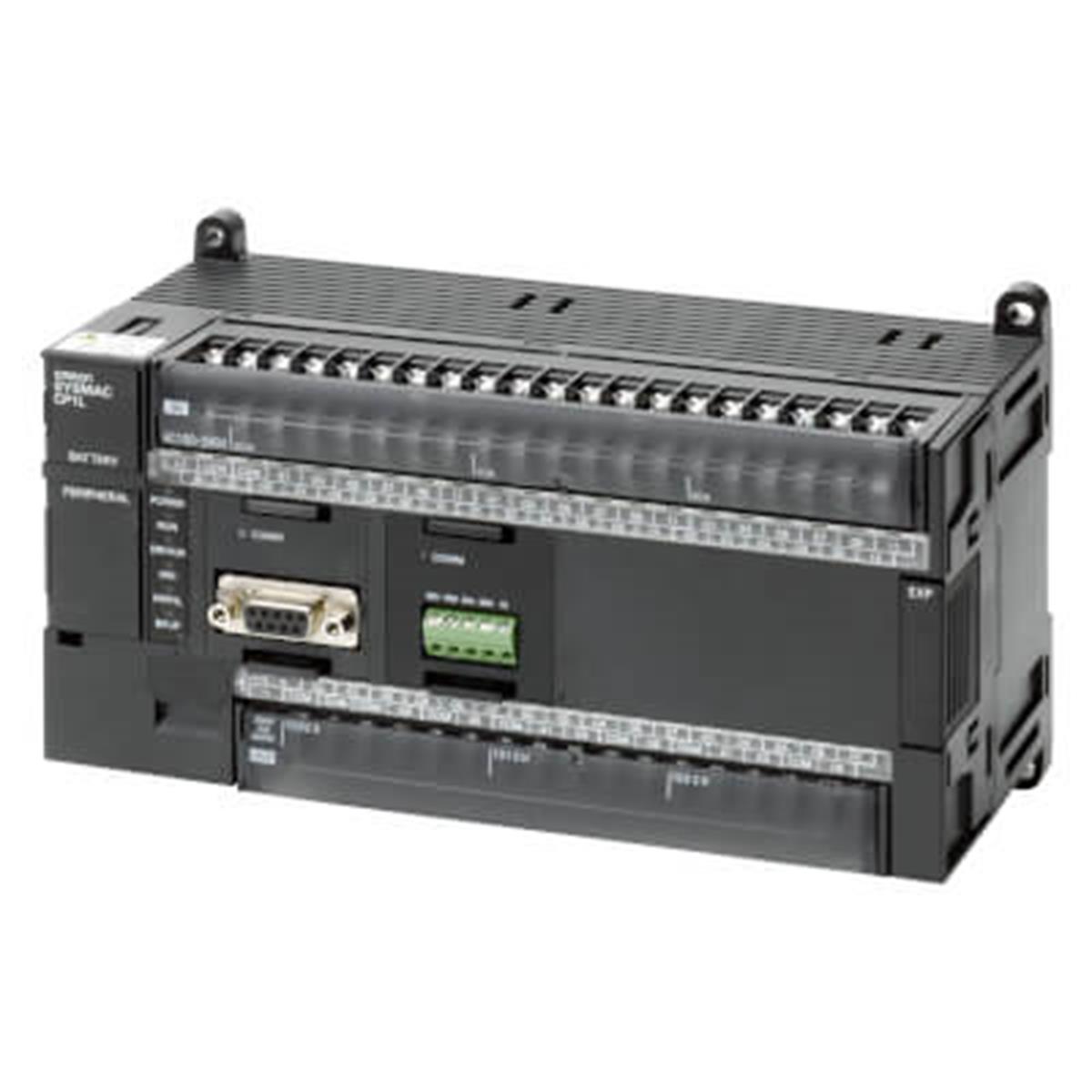

Omron CP1L-M60DT1-D (CP1L-M60DT1-D)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

PLC, 24 VDC supply, 36 x 24 VDC inputs, 24 x PNP outputs 0.3 A, 10K steps program + 32K words data memory

Tavsiye Et

Yorum Yaz

Supply voltage type	DC
Number of digital inputs	36
Input type	PNP/NPN
Number of digital outputs	24
Output type	PNP
Program capacity	10 K steps
Data memory capacity	32 K words
Logic execution time	0.55 µs
Communication port(s)	USB
Number of Ethernet ports	0
Number of USB ports	1
Number of RS-232 ports	0
Number of RS-485 ports	0
Communication option(s)	CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
Number of encoder input channels	4
Max. encoder input frequency	100 kHz
Max. number of PTP axes	2
Max. pulse output frequency	100 kHz
Function Block programming
Battery-free memory backup	x
Real-time clock
Analog option boards	x
Max. number of analog I/O channels	25
Max. number of local I/O points	180
Max. number of expansion units	3
Built-in auxiliary 24 VDC output	0 mA
Operating temperature range	0-55 °C
Height	90 mm
Width	195 mm
Depth	85 mm
Weight	680 g
