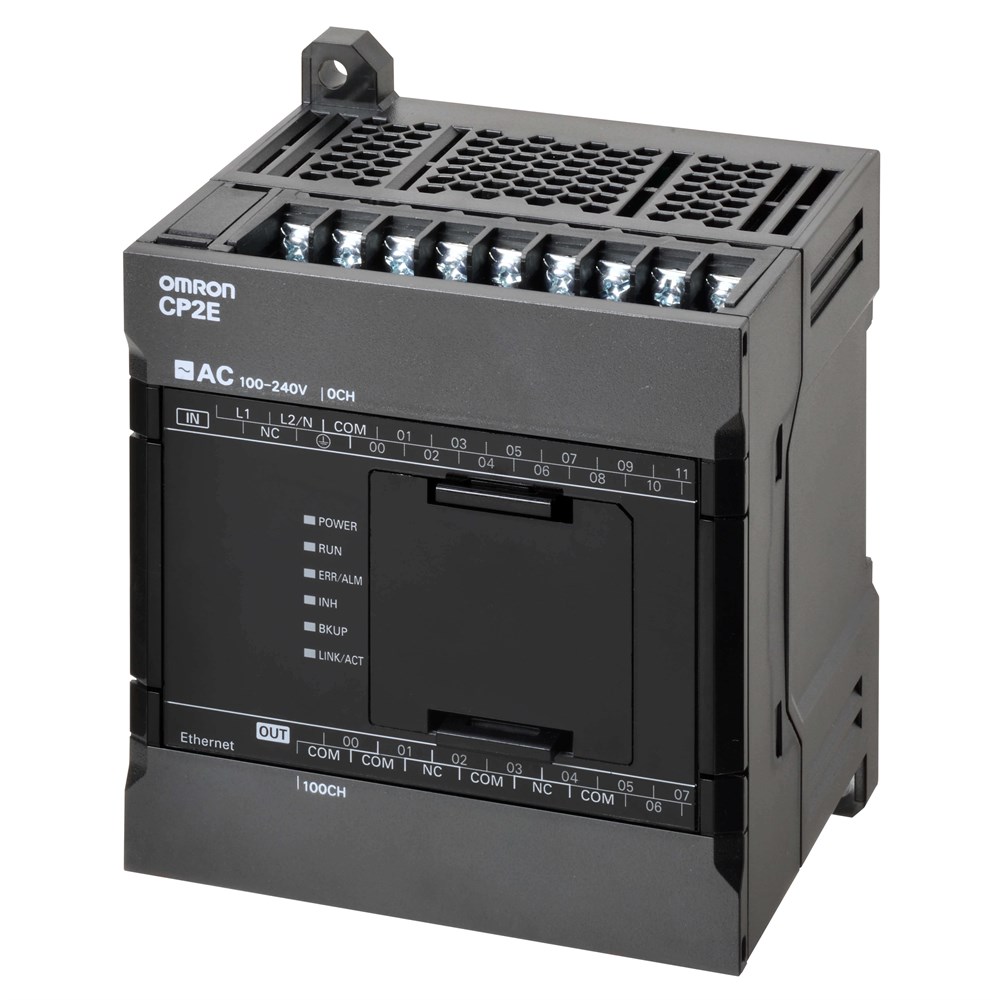

Omron CP2E-N14DT1-D
Omron CP2E-N14DT1-D
Omron

Omron CP2E-N14DT1-D (CP2E-N14DT1-D)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!







CP2E series compact PLC - Network type; 8 DI, 6DO; PNP output; Power supply 24 VDC; 10 kStep Program memory

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz





Supply voltage type DC
Number of digital inputs 8
Input type PNP/NPN
Number of digital outputs 6
Output type PNP
Program capacity 20 K steps
Data memory capacity 16 K words
Logic execution time 0.23 µs
Communication port(s) Ethernet TCP/IP
Number of Ethernet ports 1
Number of USB ports 0
Number of RS-232 ports 0
Number of RS-485 ports 0
Communication option(s) Serial RS-232C, Serial RS-422, Serial RS-485
Number of encoder input channels 6
Max. encoder input frequency 100 kHz
Max. number of PTP axes 2
Max. pulse output frequency 100 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels 4
Max. number of local I/O points 14
Max. number of expansion units 0
Built-in auxiliary 24 VDC output 0 mA
Operating temperature range -20-60 °C
Height 90 mm
Width 86 mm
Depth 80 mm
Weight 0 g
