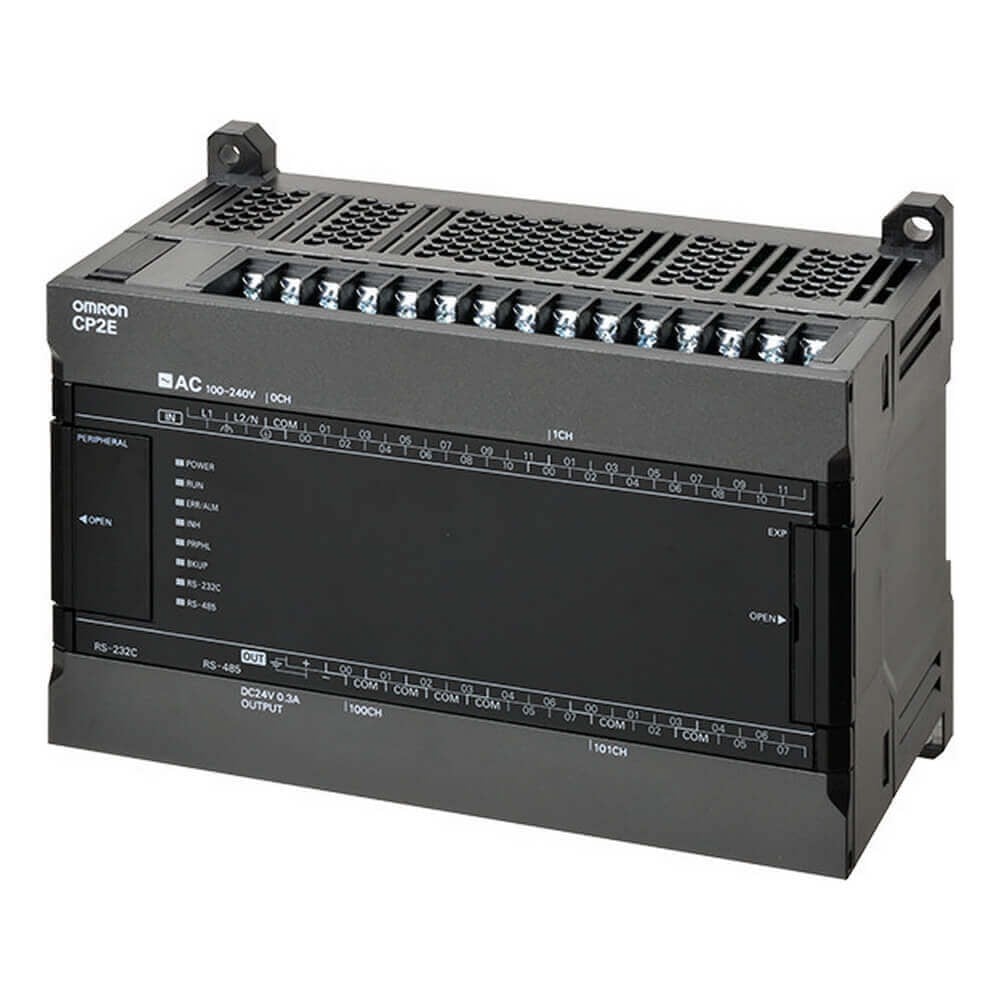

Omron CP2E-S40DT1-D
Omron CP2E-S40DT1-D
Omron

Omron CP2E-S40DT1-D (CP2E-S40DT1-D)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!







CP2E series compact PLC - Standard Type; 24 DI, 16 DO; PNP output; Power supply 24 VDC; 8 kStep Program memory

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz





Supply voltage type DC
Number of digital inputs 24
Input type PNP/NPN
Number of digital outputs 16
Output type PNP
Program capacity 16 K steps
Data memory capacity 8 K words
Logic execution time 0.23 µs
Communication port(s) Serial RS-232C, Serial RS-485, USB
Number of Ethernet ports 0
Number of USB ports 1
Number of RS-232 ports 1
Number of RS-485 ports 1
Communication option(s) CompoBus/S Slave
Number of encoder input channels 6
Max. encoder input frequency 100 kHz
Max. number of PTP axes 2
Max. pulse output frequency 100 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels 24
Max. number of local I/O points 160
Max. number of expansion units 3
Built-in auxiliary 24 VDC output 0 mA
Operating temperature range -20-60 °C
Height 90 mm
Width 150 mm
Depth 80 mm
Weight 0 g
