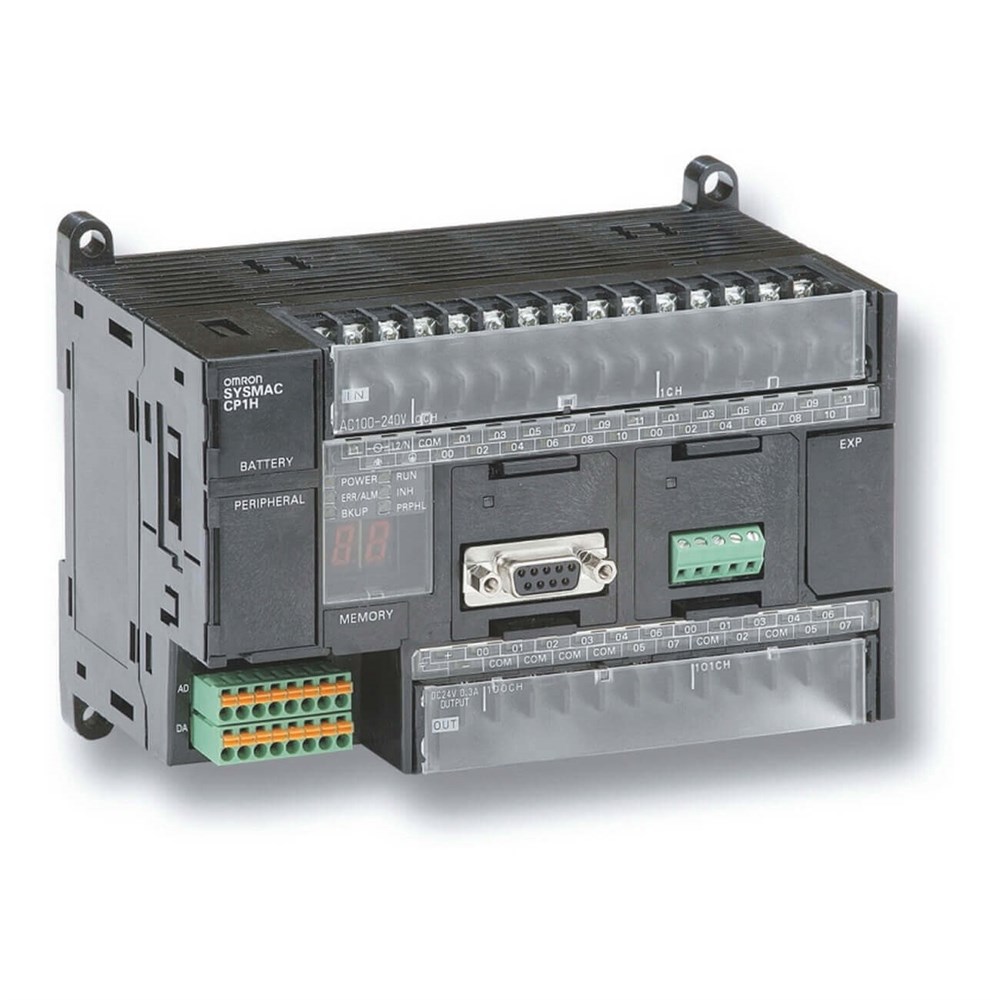

Omron CPH1-X40DT-D (CPH1-X40DT-D)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

PLC, 24 VDC besleme, 24 x 24 VDC giriş, 16 x NPN çıkış
 0,3 A, 1 x analog giriş, 20K adımlı program + 32K word veri hafızası

Tavsiye Et

Yorum Yaz

Supply voltage type	DC
Number of digital inputs	24
Input type	PNP/NPN
Number of digital outputs	16
Output type	NPN
Program capacity	20 K steps
Data memory capacity	32 K words
Logic execution time	0.10 µs
Communication port(s)	USB
Number of Ethernet ports	0
Number of USB ports	1
Number of RS-232 ports	0
Number of RS-485 ports	0
Communication option(s)	CAN, CompoBus/S Master, CompoBus/S Slave, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485
Number of encoder input channels	4
Max. encoder input frequency	100 kHz
Max. number of PTP axes	4
Max. pulse output frequency	100 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels	56
Max. number of local I/O points	320
Max. number of expansion units	7
Built-in auxiliary 24 VDC output	0 mA
Operating temperature range	0-55 °C
Height	90 mm
Width	150 mm
Depth	85 mm
Weight	600 g

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ! PLC, 24 VDC besleme, 24 x 24 VDC giriş, 16 x NPN çıkış 0,3 A, 1 x analog giriş, 20K adımlı program + 32K word veri hafızası
