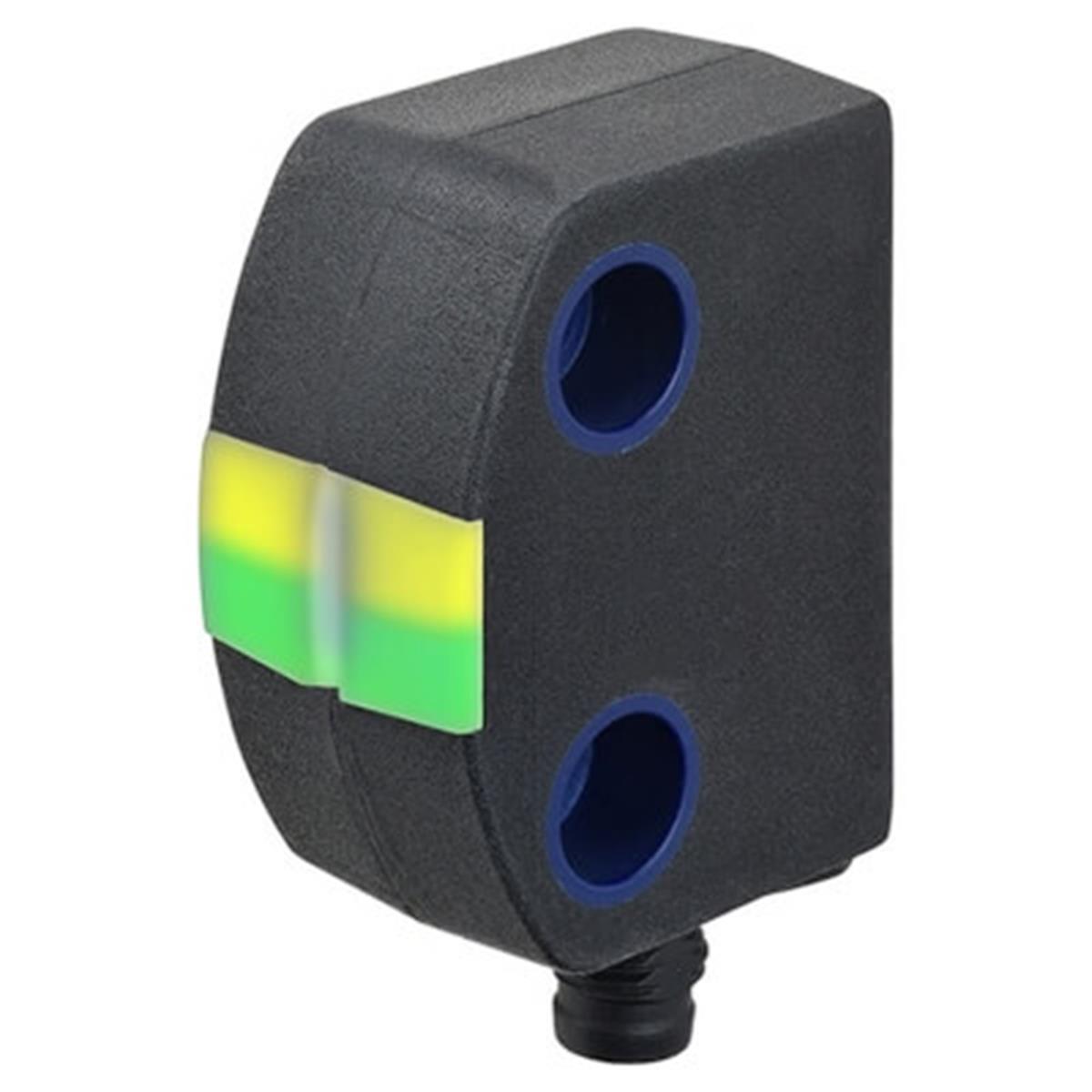

Omron D41D-1CD-N1 (D41D-1CD-N1)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

Non-contact Interlock Switch, RFID High-coded, PNP, Test Pulse, Connector plug M8

Tavsiye Et

Yorum Yaz

Coding	Unique
Connection method	Connector M8 - 8 pin
Degree of protection (IP)	IP65/IP67
Diagnostic LED	+
Door contacts NC	2
Door contacts NO	1
Door switch type	Non-contact, RFID coded
Guard-lock	x
High coding level	+
With LED indicator	+
Material housing	PBT
Number of auxiliary outputs	1
Auxiliary monitoring output	PNP type, short-circuit proof
Cable exit direction	Bottom
LED indicators	Actuator detected (yellow)
Make before break	x
Max. differential travel	20 %
Max. operating distance ON to OFF	18 mm
Min. operating distance OFF to ON	10 mm
Mounting method	M4 screws
Number of connectable switches	30 max. (wiring length: 100 m max.)
Number of OSSD	2
Output test pulses	+
Output type	PNP
Shape	Rectangular compact
Switch without actuator	+
Teaching limitation	+
Vibration resistance	10 to 55 Hz, amplitude 1.0 mm
