Omron F3SG-2RE0160P14 (F3SG-2RE0160P14)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

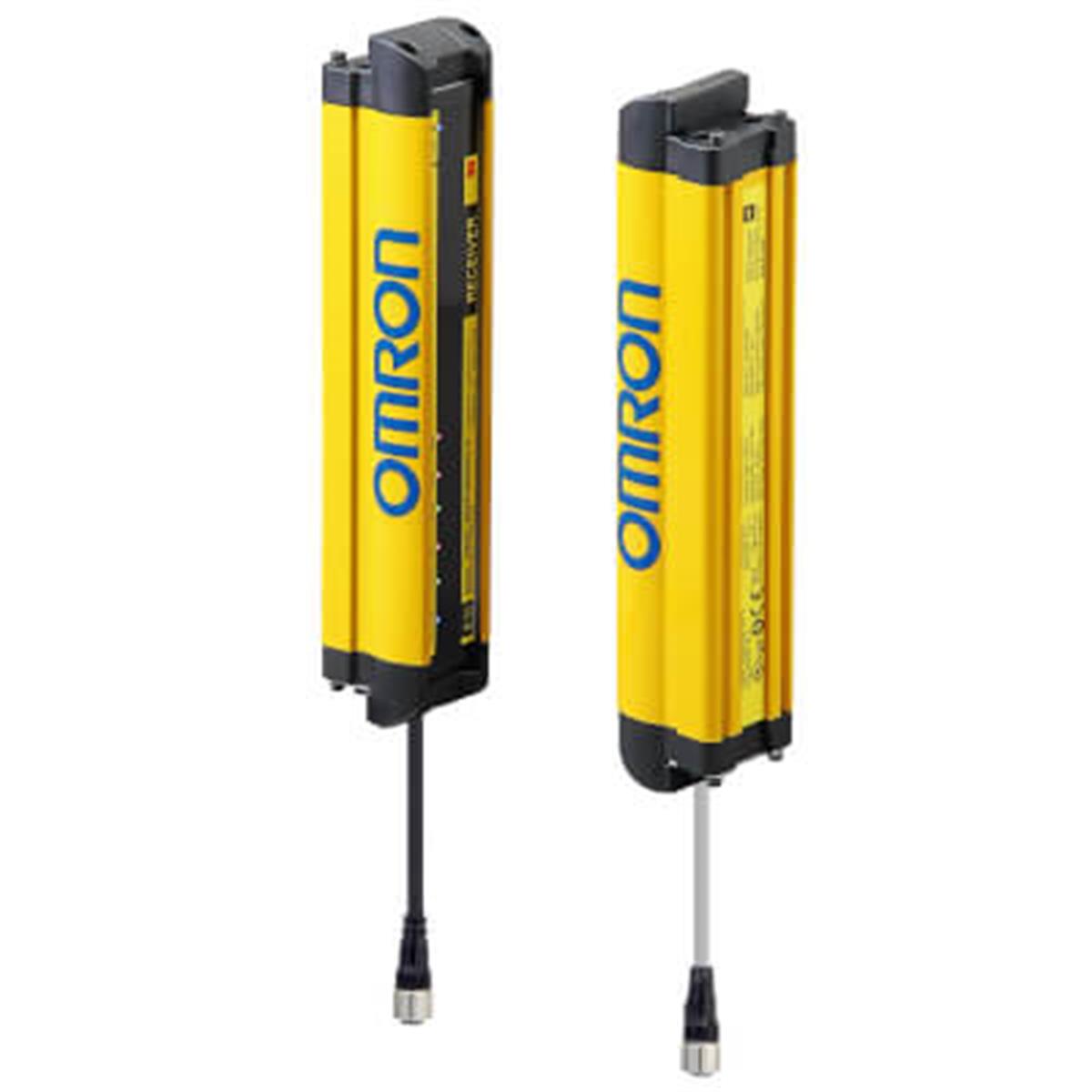

Safety sensor, F3SG-R Easy, Type 2, 14 mm resolution, range 0.3 to 10.0 m, height 160 mm, PNP

Tavsiye Et

Yorum Yaz

Type of safety according to IEC 61496-1	2
Type of protection	Finger protection
Detection capability	14 mm
Safety field height	160 mm
Beam gap	10 mm
Number of beams	15
Number of protected semiconductor outputs	2
Number of semiconductor outputs with signalling function	0
Maximum safety range	10 m
Minimum operating distance	0.3 m
Response time	5 ms
Cascadable	x
With muting function	x
With beam coding	x
Type of switching output of the OSSD	PNP
Key features	Fast response (ON/OFF applications), Simple wiring
Suitable for safety functions
Scope of delivery	Transmitter and receiver
Wavelength of the sensor	870 nm
Connection method	M12 pigtail Smartclick connector
Supply voltage DC	19.2-28.8 V
Voltage type	DC
Max. output current at protected output	300 mA
Degree of protection (IP)	IP67
Ambient temperature	-10-55 °C
Overall length	208 mm
Height of sensor	35 mm
Width sensor	35 mm
