Omron F3SG-4RE1630P30
Omron F3SG-4RE1630P30

Omron F3SG-4RE1630P30 (F3SG-4RE1630P30)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

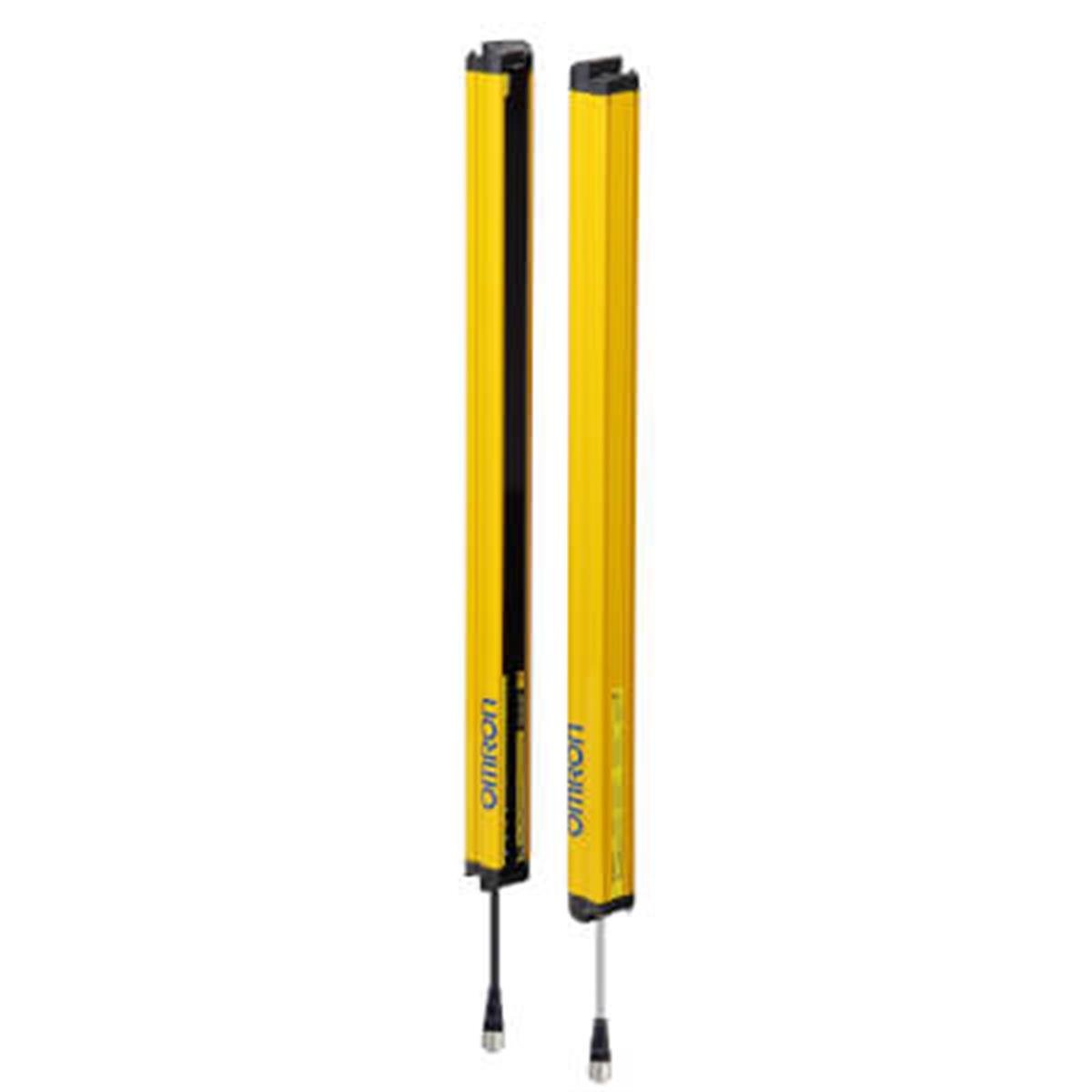

Safety Sensor, F3SG-R Easy, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 1630 mm, PNP

Type of safety according to IEC 61496-1 4
Type of protection Hand protection
Detection capability 30 mm
Safety field height 1630 mm
Beam gap 20 mm
Number of beams 80
Number of protected semiconductor outputs 2
Number of semiconductor outputs with signalling function 0
Maximum safety range 20 m
Minimum operating distance 0.3 m
Response time 9 ms
Cascadable x
With muting function x
With beam coding x
Type of switching output of the OSSD PNP
Key features Fast response (ON/OFF applications), Simple wiring
Suitable for safety functions +
Scope of delivery Transmitter and receiver
Wavelength of the sensor 870 nm
Connection method M12 pigtail Smartclick connector
Supply voltage DC 19.2-28.8 V
Voltage type DC
Max. output current at protected output 300 mA
Degree of protection (IP) IP67
Ambient temperature -10-55 °C
Overall length 1630 mm
Height of sensor 35 mm
Width sensor 35 mm
