Omron F3SG-4SRB1280-25 (F3SG-4SRB1280-25)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

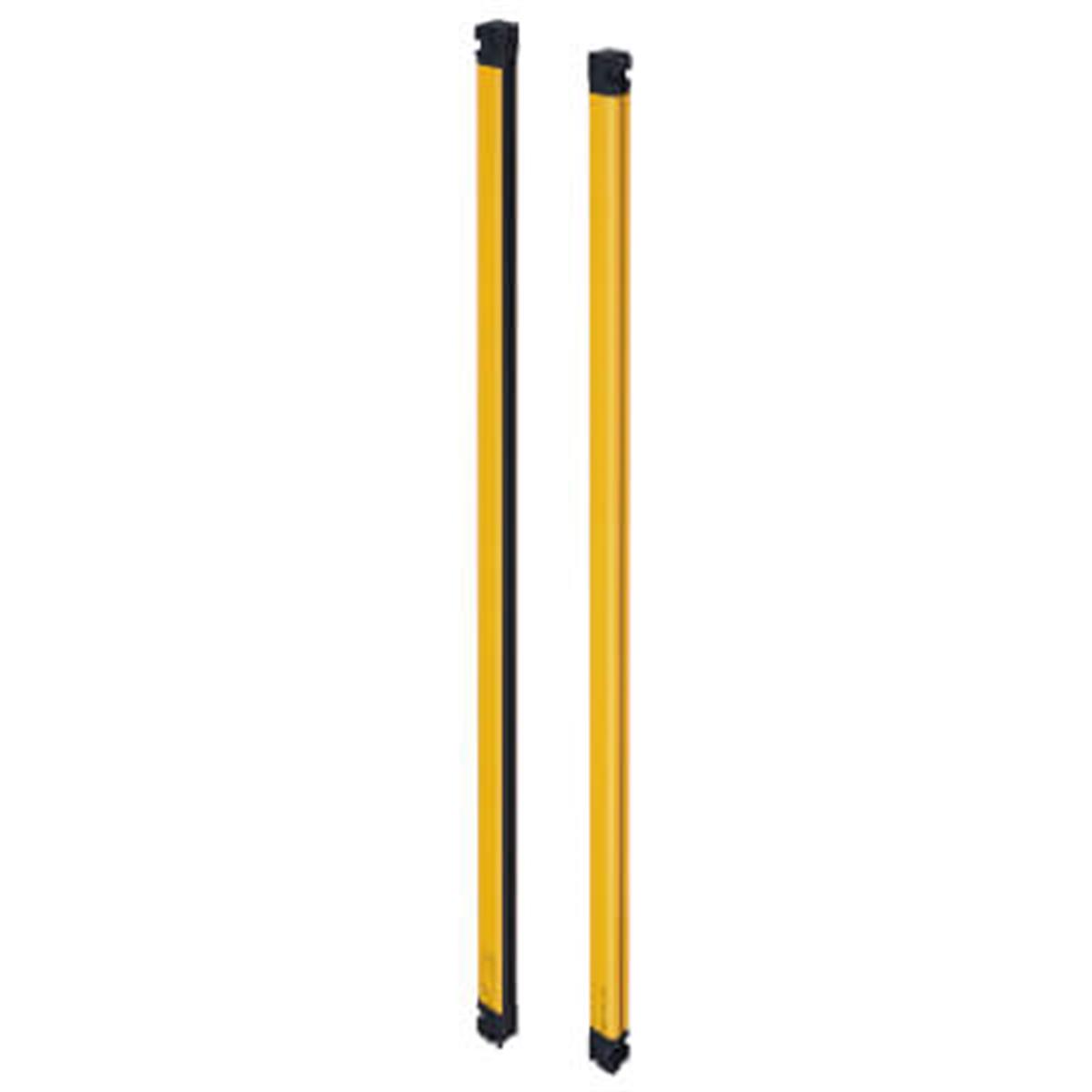

Safety Light Curtain, F3SG-SRB Standard, Type 4, 25 mm resolution, range 0.3 to 20.0 m, height 1280 mm, PNP/NPN

Tavsiye Et

Yorum Yaz

Sensing method	Safety light curtain
Type of protection	Hand protection
Number of beams	64
Detection capability	25 mm
Safety field height	1280 mm
Type of safety according to IEC 61496-1	4
Beam spacing	20 mm
Maximum safety range	20 m
Minimum operating distance	0.3 m
Key features	Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment, Warning zone
Degree of protection (IP)	IP65/IP67/IP67G
Cascadable	+
Number of protected semiconductor outputs	2
Number of semiconductor outputs with signalling function	1
Type of switching output of the OSSD	PNP/NPN
Response time	13 ms
With muting function	+
With beam coding	+
Communication option(s)	Bluetooth, IO-Link, USB
Suitable for safety functions	+
Scope of delivery	Transmitter and receiver
Wavelength of the sensor	870 nm
Connection method	Root connector (order separately)
Supply voltage DC	19.2-28.8 V
Max. output current at protected output	300 mA
Ambient temperature	-30-55 °C
Overall length	1280 mm
Height of sensor	38 mm
Width sensor	32 mm
Number of fixed side-mount brackets	2
Number of adjustable side-mount brackets	2
Number of intermediate brackets	1
