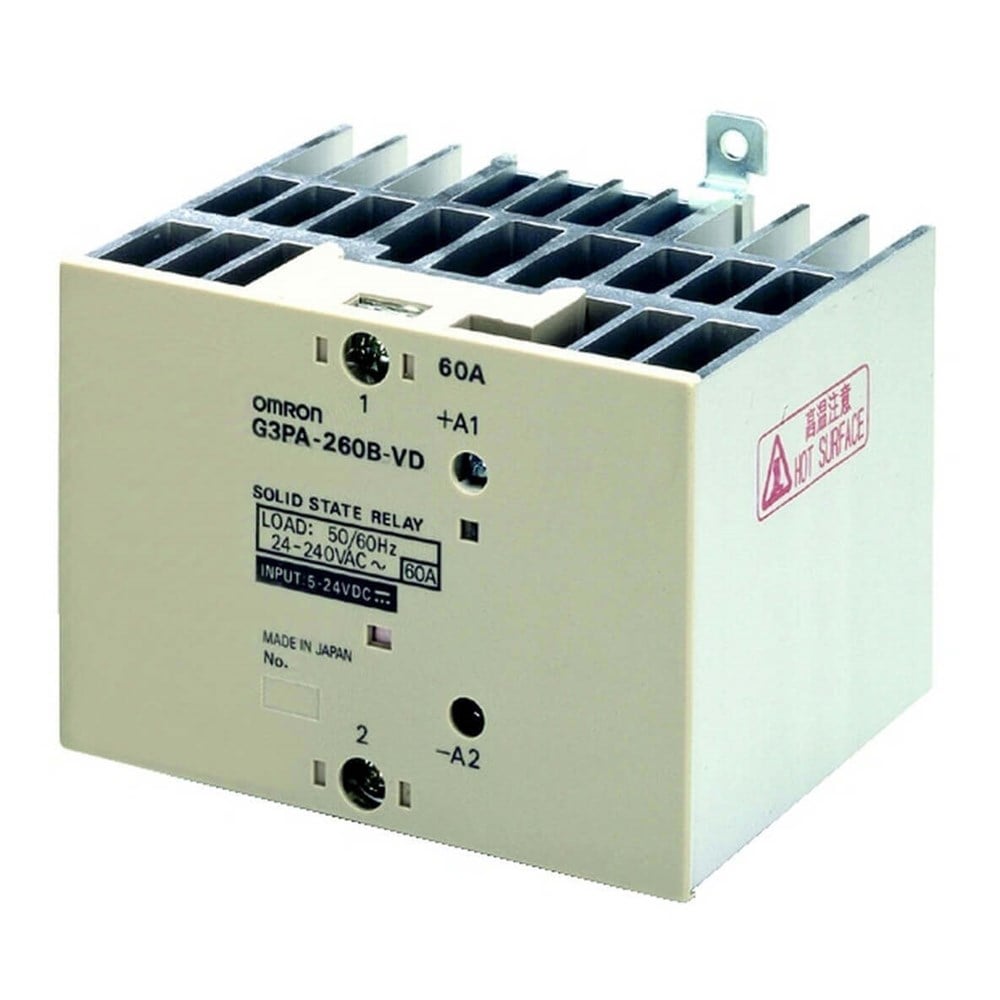

Omron G3PA-260B-VD 5-24VDC
Omron G3PA-260B-VD 5-24VDC
Omron

Omron G3PA-260B-VD 5-24VDC (G3PA-260B-VD 5-24VDC)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!







Solid state relay, DIN rail/surface mounting, 1-pole, 60 A, 264 VAC max

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Application ON/OFF control
Number of phases 1
Number of poles 1
Mounting method DIN rail
Terminal Screw
With LED indicator
Rated operational voltage, AC 24-240 V
Operating voltage range, AC 19-264 V
Rated operation current Ie at AC-1 60 A
Rated load current Close mounting 48 A
Permissible I²t value 1260 A²s
Height 100 mm
Width 110 mm
Depth 100 mm
Supply voltage DC 5-24 V
Control current max. 7 mA
Must operate voltage max. 4 V
Must release voltage min. 1 V
Maximum operating temperature 80 °C
Minimum operating temperature -30 °C
Isolation Phototriac
Switching at zero-crossing
