Omron G3PE-525B-2N 12-24VDC
Omron G3PE-525B-2N 12-24VDC
Omron

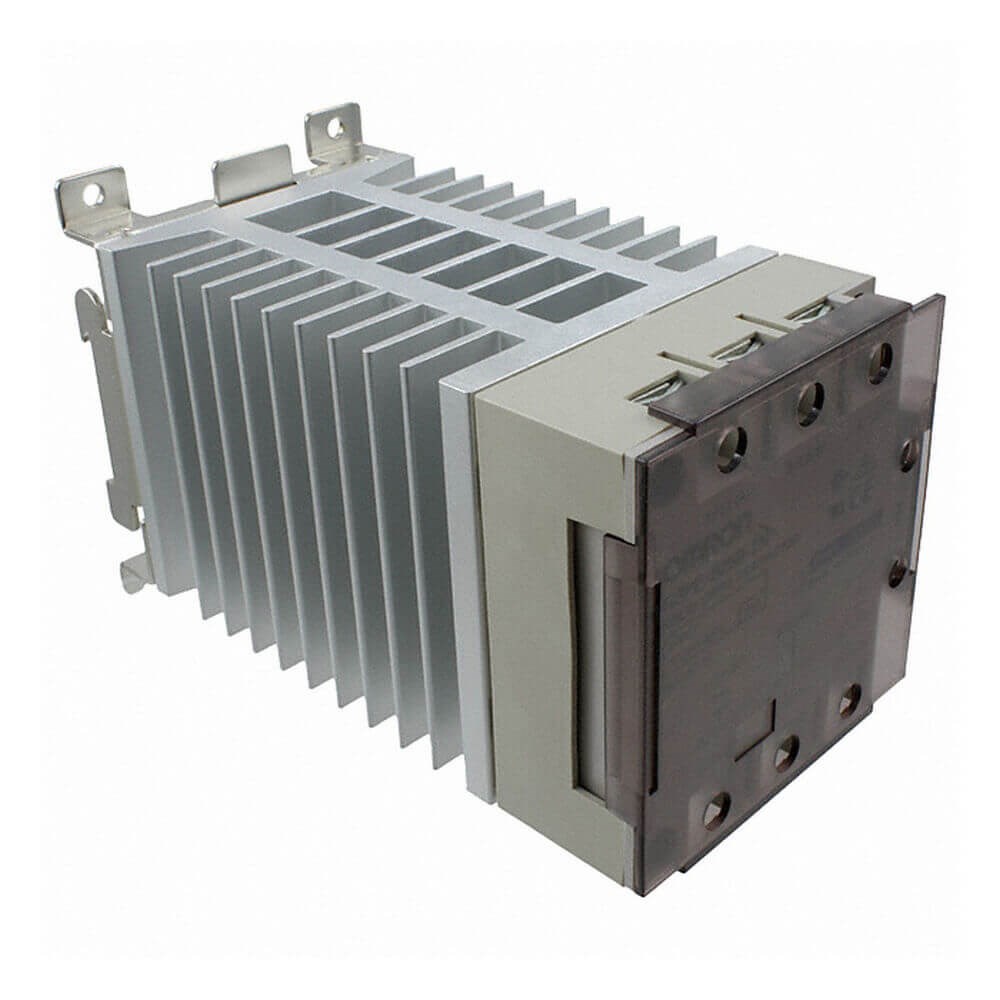

Omron G3PE-525B-2N 12-24VDC (G3PE-525B-2N 12-24VDC)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!







Solid state relay, 2-pole, DIN-track mounting, 25A, 528VAC max

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Application ON/OFF control
Number of phases 3
Number of poles 2
Mounting method DIN rail/screw
Terminal Screw
Complete with socket
With LED indicator
Rated operational voltage, AC 200-480 V
Operating voltage range, AC 180-528 V
Rated operation current Ie at AC-1 25 A
Permissible I²t value 260 A²s
Applicable heater capacity (AC1: resistive load) 20.7 kW
Height 100 mm
Width 80 mm
Depth 155 mm
Supply voltage DC 12-24 V
Control current max. 10 mA
Must operate voltage max. 9.6 V
Must release voltage min. 1 V
Maximum operating temperature 80 °C
Minimum operating temperature -30 °C
Isolation Phototriac
