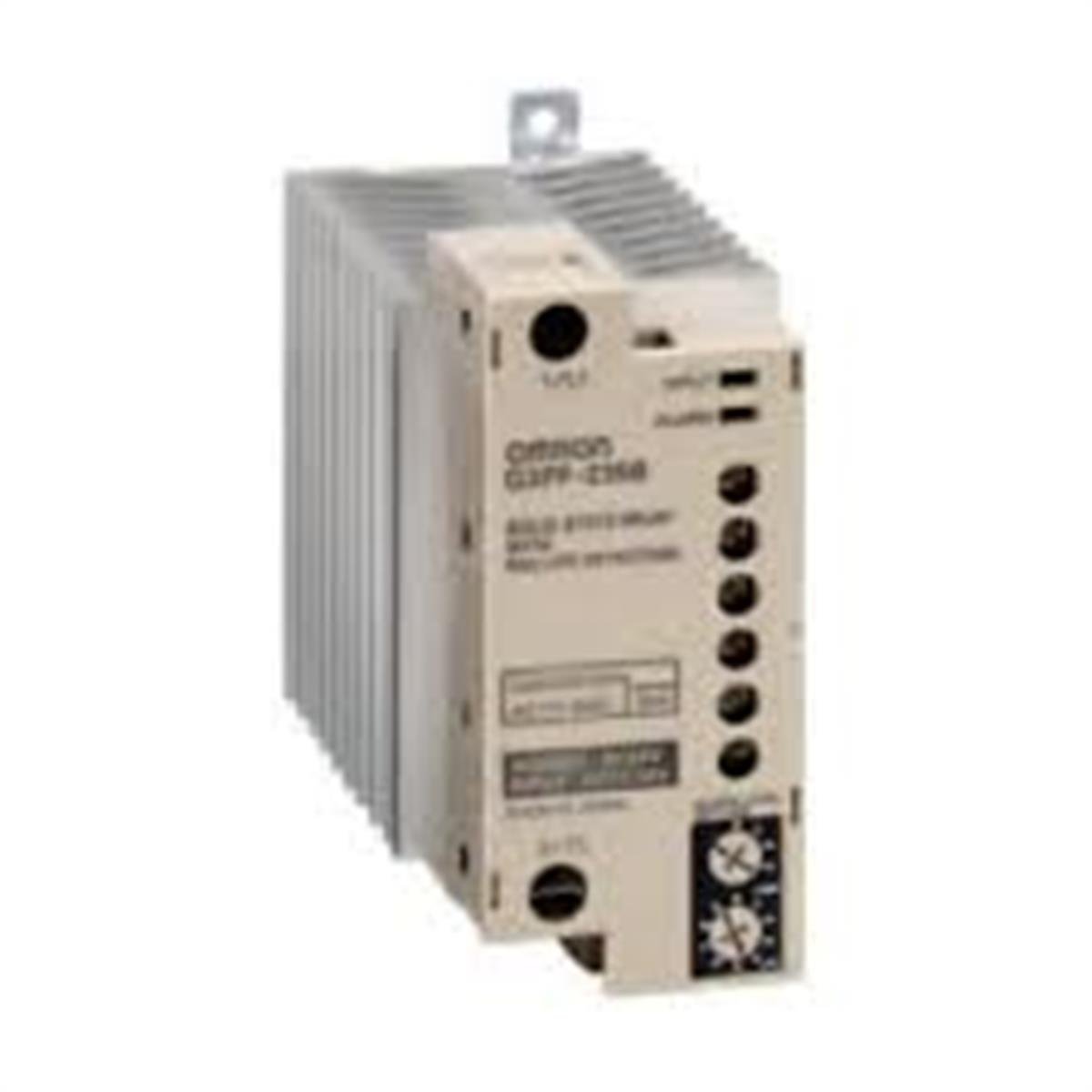

Omron G3PF-225B 24VDC
Omron G3PF-225B 24VDC
Omron

Omron G3PF-225B 24VDC (G3PF-225B 24VDC)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!





Solid-state relay 25 A, 100 to 240 VAC, with built in current transformer, M3 terminals, 1 alarm

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Application ON/OFF control
Mounting method DIN rail/screw
Terminal Screw
Complete with socket x
With LED indicator
Rated operational voltage, AC 100-240 V
Operating voltage range, AC 75-264 V
Control current max. 10 mA
Must operate voltage max. 9.6 V
Must release voltage min. 1 V
Maximum operating temperature 60 °C
Minimum operating temperature -20 °C
Isolation Phototriac
Functions HB/HS alarm for 1-phase heaters
Number of phases 1
Rated operation current Ie at AC-1 25 A
Height 100 mm
Width 45 mm
Depth 110 mm
Supply voltage DC 9.6-26.4 V
Switching at zero-crossing
