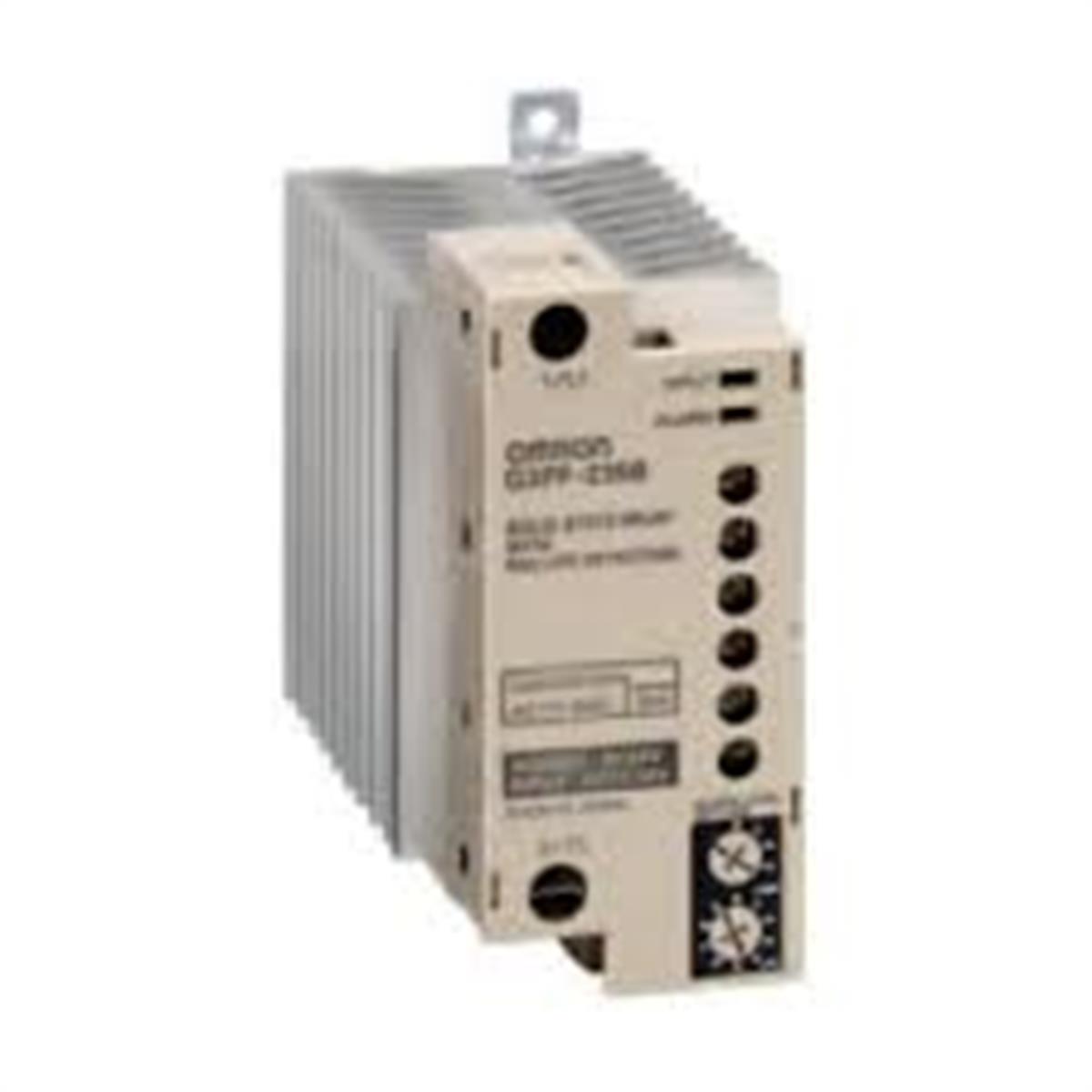

Omron G3PF-535B-CTB 24VDC
Omron G3PF-535B-CTB 24VDC
Omron

Omron G3PF-535B-CTB 24VDC (G3PF-535B-CTB 24VDC)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!





Solid-state relay 35 A, 200 to 480 VAC, with built in current transformer, jack-in cage clamp terminals, 2 alarms

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Application ON/OFF control
Mounting method DIN rail/screw
Terminal Push-in
Complete with socket
With LED indicator
Rated operational voltage, AC 200-480 V
Operating voltage range, AC 180-528 V
Control current max. 10 mA
Must operate voltage max. 9.6 V
Must release voltage min. 1 V
Maximum operating temperature 60 °C
Minimum operating temperature -20 °C
Isolation Phototriac
Functions HB/HS alarm for 3-phase heaters
Number of phases 1
Rated operation current Ie at AC-1 35 A
Height 100 mm
Width 55 mm
Depth 137 mm
Supply voltage DC 9.6-26.4 V
Switching at zero-crossing
