Omron G3PJ-515B DC12-24
Omron G3PJ-515B DC12-24
Omron

Omron G3PJ-515B DC12-24 (G3PJ-515B DC12-24)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

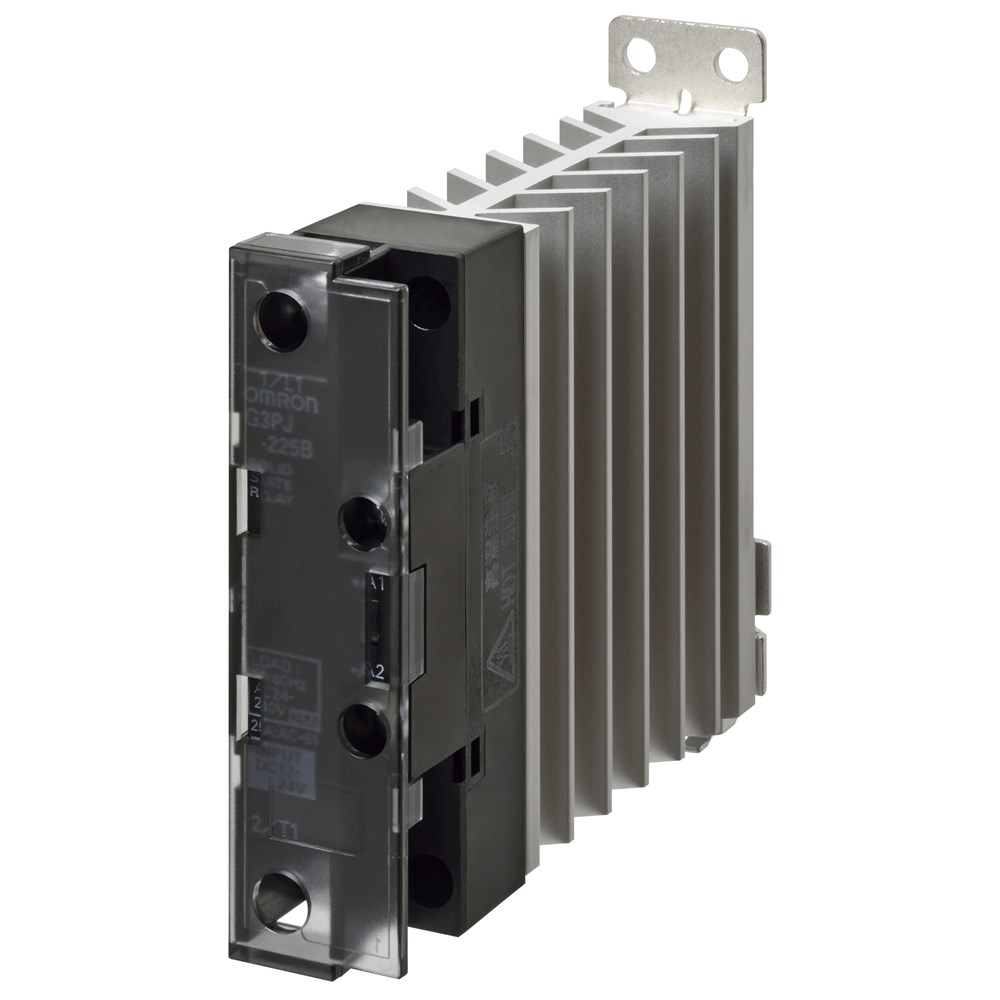

Solid-state relay, 1 phase, 23A, 100-480V AC, with heat sink, DIN rail mount, input voltage 12-24V DC

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Application Power control
Number of phases 1
Number of poles 1
Mounting method DIN rail/screw
Terminal Screw
Complete with socket
With LED indicator
Rated operational voltage, AC 100-480 V
Operating voltage range, AC 75-528 V
Rated operation current Ie at AC-1 23 A
Rated load current Close mounting 15 A
Permissible I²t value 1350 A²s
Height 100 mm
Width 22.5 mm
Depth 100 mm
Supply voltage DC 12-24 V
Control current max. 7 mA
Must operate voltage max. 9.6 V
Must release voltage min. 1 V
Maximum operating temperature 80 °C
Minimum operating temperature -30 °C
Isolation Phototriac
