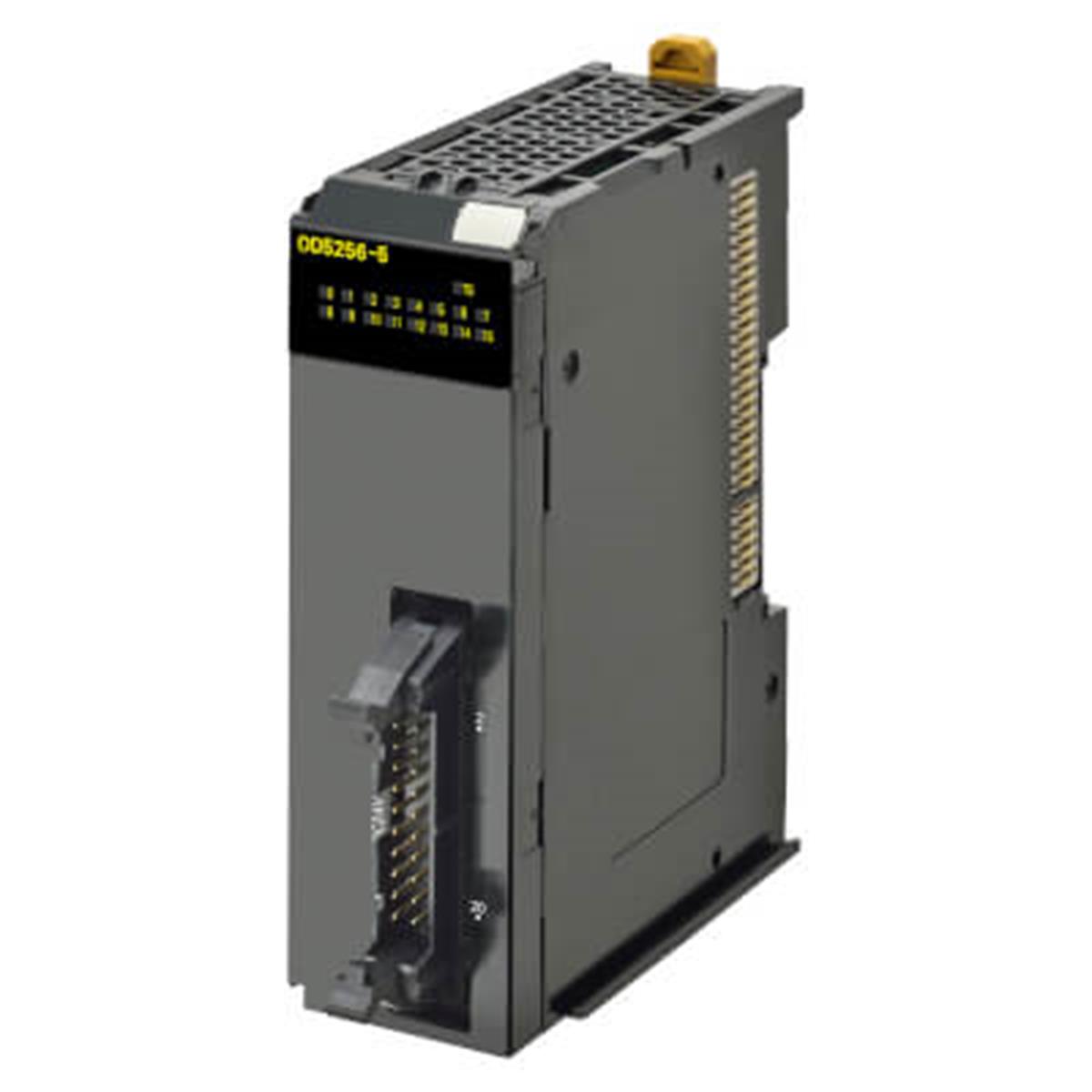

Omron NX-OD5256-5
Omron NX-OD5256-5

Omron NX-OD5256-5 (NX-OD5256-5)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!







16 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, MIL20 connector (not included), 30 mm wide

I/O system NX I/O Bus
Type of module Digital I/O
Number of digital inputs 0
Digital input type None
OFF/ON delay 0.5-1.0 ms
Number of digital outputs 16
Digital output type PNP
Permitted voltage at output 20.4-28.8 V
Output current 0.5 A
Short-circuit protected outputs
Connection method 1-wire
Signal processing Free running, Standard speed, Synchronous
IO link master x
I/O connection type MIL (plug not included)
Number of I/O connectors 1
Detachable I/O connector
Suitable for safety functions x
SIL according to IEC 61508 None
Communication port(s) None
Number of IOV (V+) terminals 2
Number of IOG (V-) terminals 2
Number of COM terminals 0
Degree of protection (IP) IP20
Height 100 mm
Width 30 mm
Depth 89.52 mm
Weight 85 g
