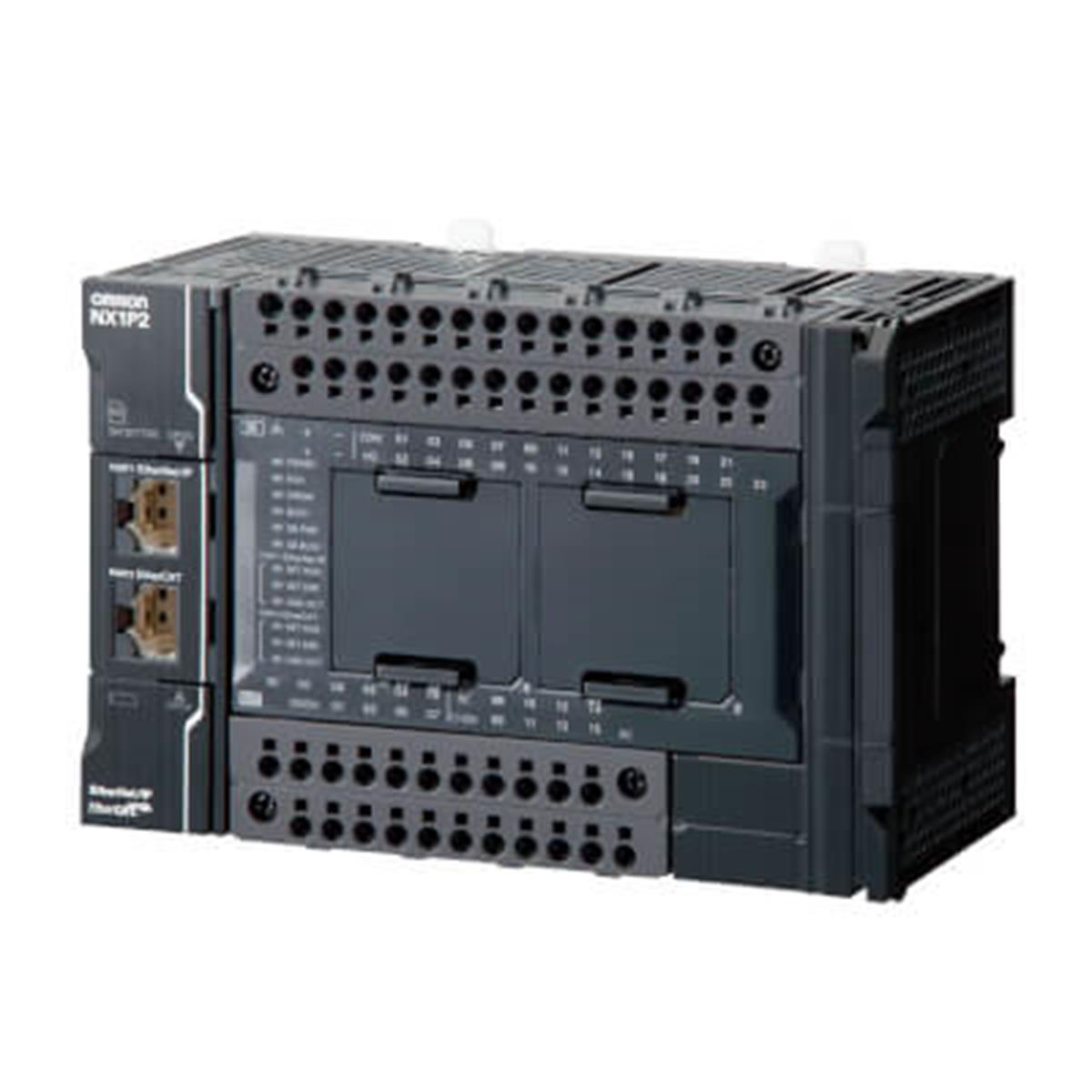

Omron NX1P2-1040DT
Omron NX1P2-1040DT

Omron NX1P2-1040DT (NX1P2-1040DT)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!







Sysmac NX1P CPU with 40 Digital Transistor I/O (NPN), 1.5 MB memory, EtherCAT (2 servo axes, 4 PTP axes, 16 EtherCAT nodes), EtherNet/IP and 2 serial option ports

Primary task cycle time 2 ms
Program memory 1.5 MB
Variables memory 2 MB
Max. number of synchronous axes 2
Max. number of PTP axes 4
Number of digital inputs 24
Input type PNP/NPN
Number of digital outputs 16
Output type NPN
Number of serial option boards 2
Max. number of expansion units 8
Max. number of remote I/O nodes 16
Communication port(s) EtherCAT Master, EtherNet/IP, Ethernet TCP/IP
Number of Ethernet ports 2
Number of USB ports 0
Communication option(s) Serial RS-232C, Serial RS-422, Serial RS-485
Real-time clock
Supply voltage DC 20.4-28.8 V
Height 100 mm
Width 148 mm
Depth 71 mm
Weight 650 g
