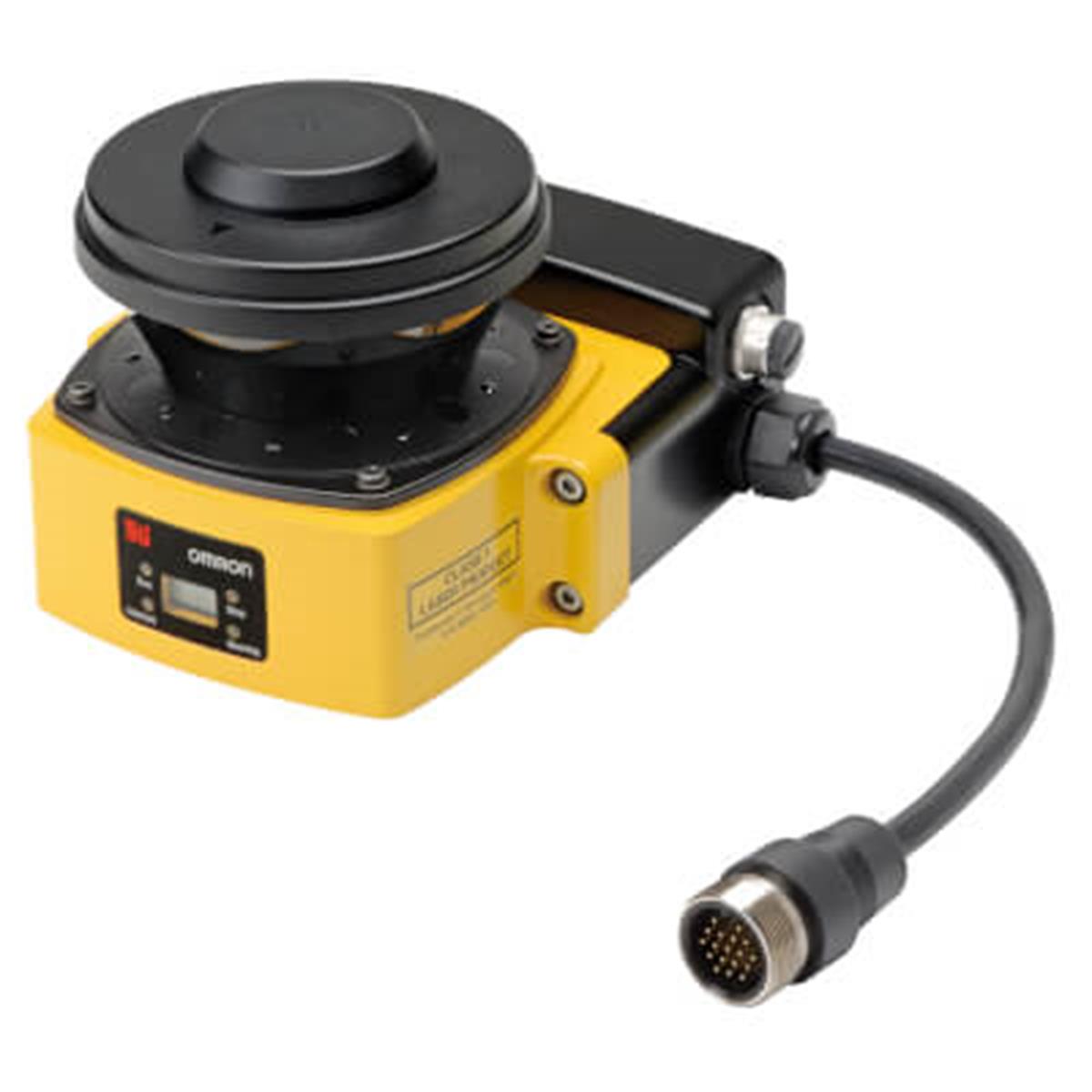

Omron OS32C-SP1-4M (OS32C-SP1-4M)

Marka : Omron

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

Safety laser scanner, safety radius 4m, warning zone 15 m, PLd & Cat 3, 24 VDC, side location cable exit

Tavsiye Et

Yorum Yaz

Type of safety according to IEC 61496-1	3
Maximum safety range	4 m
Maximum warning range	15 m
Cable entry direction	Side
Type of switching output of the OSSD	PNP
Connection method	Pigtail connector
Key features	Configurable object resolution of 30, 40, 50 or 70 mm, Manual/auto start, Reference boundary monitoring
Type of protection	Hand protection
Detection capability	70 mm
Suitable for safety functions
Scan angle	270 °
Scanning interval	0.4 Hz
Response time	80 ms
Number of safety fields	140
Wavelength of the sensor	905 nm
Number of protected semiconductor outputs	2
Number of semiconductor outputs with signalling function	2
Laser protection class	Class 1
Supply voltage DC	16.8-30 V
Voltage type	DC
Max. output current at protected output	250 mA
Degree of protection (IP)	IP65
With alert field output
Ambient temperature	-10-50 °C
Overall length	143 mm
Height of sensor	105 mm
Width sensor	105 mm
